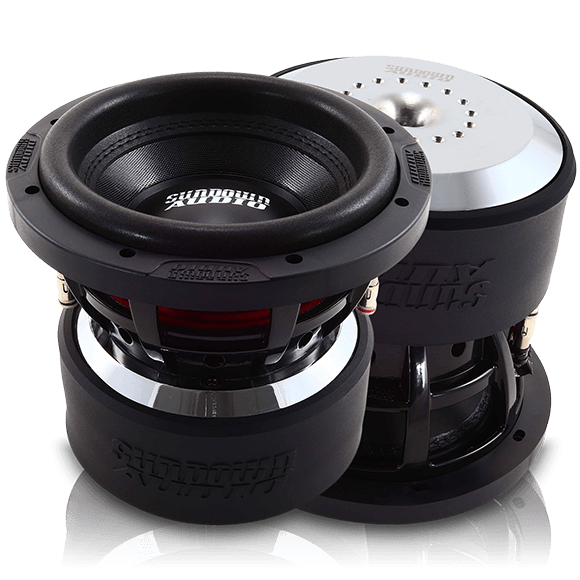

X-Series v.3 8" 800W X-8 Subwoofer

Name: X-Series v.3 8" 800W X-8 Subwoofer
Brand: Sundown Audio
Price: 389.99 USD
Availability: InStock

USD 389.99

Description

The X-8 v.3 is pretty much THE KING of 8" subwoofers and, certainly, is one of the most popular 8s we've ever produced during its 4+ years in continuous production. It builds on the legacy of the v1 and v2 models but definitively trounces both of them in every way. The secret sauce is largely in the painstakingly FEA optimized spider and surround. It's hard to overstate the impact of proper suspension design on a subwoofer but anyone who has used the X-8 v.3 can attest that we've nailed it here. Beyond the suspension - the X-8 v.3 is built on our custom-tooled 8" frame. It represents the absolute maximum performance possible on this frame platform - nearly 10 years after tooling the frame for the SA-8 v2 we have completely maxed it out! The motor and coil are capable of ~20mm of linear x-max one-way and around 2.4" p-p before the coil leaves the gap (with a little beyond that before any physical bottom is reached). As with most of our subs it also features an aluminum magnet ID shorting ring for reduced inductive distortion as well as a few other secret Sundown tricks for distortion reduction! It's safe to say that the 800-watt RMS rating is quite conservative. Specifications T/S SPECS X V.3 8″ D2 X V.3 8″ D4 RE (Ohms) 4.0 6.0 FS (Hz) 47.4 49.6 VAS (L) 3.6 3.2 Qes 0.36 0.40 Qms 2.58 3.32 Qts 0.31 0.36 Le (mH) 2.01 3.41 BL (NA) 26.0 30.7 Mms (Grams) 202.8 203.5 Cms (uM/N) 0.06 0.05 Sens (dB @ 1w/1m) 82.1 81.8 Xmax 19mm 19mm Enclosure Specifications X v.3 8 Sealed Enclosure 0.3-.04cuft Ported Enclosure 0.75-1.0 cu ft Recommended Tuning 32hz Recommended Port Area 12-16 sq in Displacement 0.13 cu ft Depth 6.8" Outside Diam. 8.70" Cutout 7.36" Physical Dimensions Download

Sundown Audio discount code

You could save on Sundown Audio X-Series v.3 8" 800W X-8 Subwoofer with a Sundown Audio promo code:

10% off

133 uses

high

worked 4 days ago

10% Off Storewide at Sundown Audio

View all Sundown Audio coupons and promo codes

More Sundown Audio Products

SDDN 12" Limited Edition Competition Subwoofer

3,500 watts RMS Available in 10 through 18-inch versions Dual 1 ohm coils Mega V2 Cone Aluminum 3.3” x 80mm coil Dual 8 AWG terminals with dual-layer tinsel leads Custom cross-cut pole piece with Neodymium cap for increased output and thermal control 5-layer spider 1,336 oz (83.5 lbs) magnet with integrated thermal ventilation Optimized for 4th & 6th order enclosures Carbon cone upgrade available Designed in-house by Sundown Founder Jacob Fuller, the 3,500-watt RMS SDDN is available in 10, 12, 15, and 18-inch models. Each unit boasts a massive 83-pound motor with integrated thermal ventilation, featuring a custom cross-cut pole piece with a Neodymium cap for increased output and thermal control. Sundown’s signature Mega V2 cone is paired with a five-layer spider, a 3.3” x 80mm aluminum voice coil (dual 1-ohm), and dual tinsel leads per eight-gauge terminal. SPECIFICATIONS Re = 1.9304Fs = 33.2047Zmax = 42.5300Qes = 0.2230Qms = 4.6903Qts = 0.2129Le = 3.9838Diam =241.3000Sd = 45730.3524Vas = 14.6269BL = 29.0291Mms = 466.6183Cms = 49.2355Sensitivity 1w/1m = 85.5519 dBXmax = 35mm

USD 1349.99

X-Series v.3 15" Subwoofer

RMS 2000 watts Dual 1 or 2 ohm voice coil Made for extremely deep bass Triple-stacked magnet 3” voice coil Hyper-extended pole Built to order Designed with an extended pole piece and an incredible four inches of peak-to-peak excursion, the X v.3 is engineered for ultra-deep bass and high power handling. Engineered to set a new standard in the low-frequency/small-ported-box subwoofer category, the X Series can also work in up to a 50% larger enclosure if you desire even more low-end extension. The X v.3 series differentiates itself with its incredibly linear suspension, ensuring the lowest level of bass extension in a small enclosure while maintaining extremely low levels of distortion. Notably, the v.3 series features a much larger motor structure (220mm vs. 190mm on the V.1 series), improved motor ventilation, and an all-new Mega-Roll v.2 surround, providing a more linear and rugged update to the world-famous Mega-Roll v.1 surround design. Specifications T/S SPECS X V.3 15″ D1 X V.3 15″ D2 RE (Ohms) 1.4 3.2 FS (Hz) 31.418 31.423 VAS (L) 45.907 45.924 Qes 0.486 0.561 Qms 2.562 2.801 Qts 0.409 0.468 Le (mH) BL (NA) 15.518 21.831 Mms (Grams) 423.721 423.436 Cms (uM/N) 60.563 60.585 Sens (dB @ 1w/1m) 86.5dB 85.9dB Enclosure Specifications X v.3 15 Sealed Enclosure N/A Ported Enclosure 4.25 cu ft Recommended Tuning 32hz Recommended Port Area 68 sq in Displacement 0.22 cu ft Depth 11.6" Outside Diam. 15.51" Cutout 13.83" Physical Dimensions Download Enclosure Designs .Zip File

USD 819.99

X-Series v.3 12" Subwoofer

RMS 2000 watts Dual 1 or 2 ohm voice coil Made for extremely deep bass Triple-stacked magnet 3” voice coil Hyper-extended pole Built to order Designed with an extended pole piece and an incredible four inches of peak-to-peak excursion, the X v.3 is engineered for ultra-deep bass and high power handling. Engineered to set a new standard in the low-frequency/small-ported-box subwoofer category, the X Series can also work in up to a 50% larger enclosure if you desire even more low-end extension. The X v.3 series differentiates itself with its incredibly linear suspension, ensuring the lowest level of bass extension in a small enclosure while maintaining extremely low levels of distortion. Notably, the v.3 series features a much larger motor structure (220mm vs. 190mm on the v.1 series), improved motor ventilation, and an all-new Mega-Roll v.2 surround, providing a more linear and rugged update to the world-famous Mega-Roll v.1 surround design. Specifications T/S SPECS X V.3 12″ D1 X V.3 12″ D2 RE (Ohms) 1.4 3.2 FS (Hz) 37.098 37.235 VAS (L) 12.986 17.077 Qes 0.486 0.543 Qms 2.597 2.779 Qts 0.409 0.454 Le (mH) BL (NA) 15.943 19.857 Mms (Grams) 378.626 285.817 Cms (uM/N) 48.611 63.922 Sens (dB @ 1w/1m) 83.2dB 84.0dB Enclosure Specifications X v.3 12 Sealed Enclosure N/A Ported Enclosure 2.5 cu ft Recommended Tuning 32hz Recommended Port Area 40 sq in Displacement 0.2 cu ft Depth 10.4" Outside Diam. 12.68" Cutout 11.09" Physical Dimensions Download Enclosure Designs .Zip File

USD 519.99

X-Series v.3 12" Subwoofer USED

This is a used product that has been professionally rebuilt here at Sundown Audio. It comes with a non-doa warranty only. That means they are guaranteed to work when you receive it but no further warranty afterwards. Let us know within 24 hours of delivery if this product has an issue. We will not warranty any used subwoofer after that time. These potentially have scratches & scuffs on the magnets/motors and will not be in new condition. RMS 2000 watts Dual 1 or 2 ohm voice coil Made for extremely deep bass Triple-stacked magnet 3” voice coil Hyper-extended pole Built to order Designed with an extended pole piece and an incredible four inches of peak-to-peak excursion, the X v.3 is engineered for ultra-deep bass and high power handling. Engineered to set a new standard in the low-frequency/small-ported-box subwoofer category, the X Series can also work in up to a 50% larger enclosure if you desire even more low-end extension. The X v.3 series differentiates itself with its incredibly linear suspension, ensuring the lowest level of bass extension in a small enclosure while maintaining extremely low levels of distortion. Notably, the v.3 series features a much larger motor structure (220mm vs. 190mm on the v.1 series), improved motor ventilation, and an all-new Mega-Roll v.2 surround, providing a more linear and rugged update to the world-famous Mega-Roll v.1 surround design. Specifications T/S SPECS X V.3 12″ D1 X V.3 12″ D2 RE (Ohms) 1.4 3.2 FS (Hz) 37.098 37.235 VAS (L) 12.986 17.077 Qes 0.486 0.543 Qms 2.597 2.779 Qts 0.409 0.454 Le (mH) BL (NA) 15.943 19.857 Mms (Grams) 378.626 285.817 Cms (uM/N) 48.611 63.922 Sens (dB @ 1w/1m) 83.2dB 84.0dB Xmax 30mm 30mm Enclosure Specifications X v.3 12 Sealed Enclosure N/A Ported Enclosure 2.5 cu ft Recommended Tuning 32hz Recommended Port Area 40 sq in Displacement 0.2 cu ft Depth 10.4" Outside Diam. 12.68" Cutout 11.09" Physical Dimensions Download Enclosure Designs .Zip File

USD 410.49
